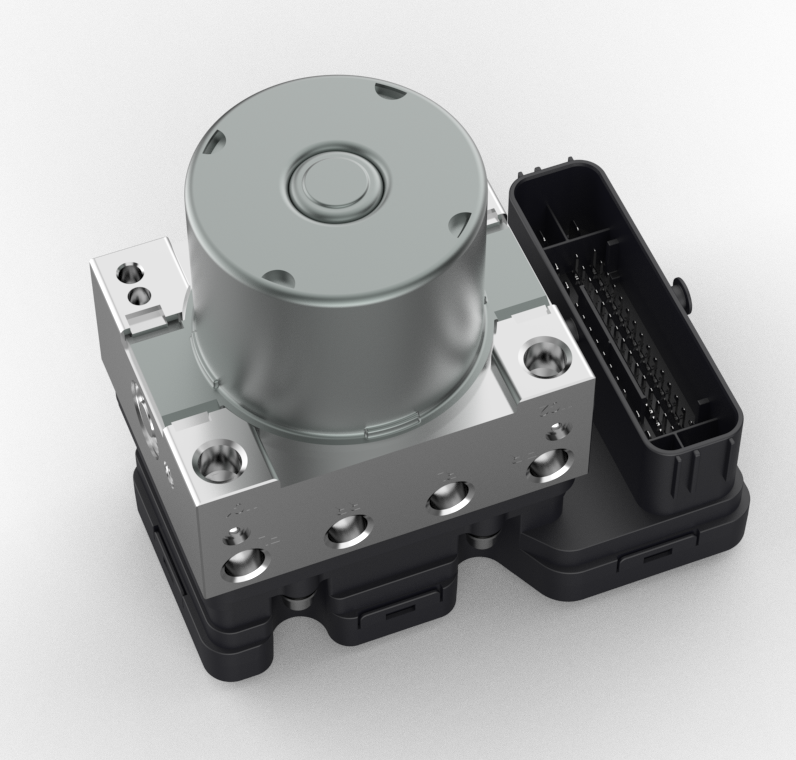

DJ-ABS-IE101
share
Product features:
Customization of development products based on the integrated, multifunctional, miniaturized, and low-cost needs of small electric vehicles for urban use;
ECU: Adopting ARM architecture 32bit chip platform, with powerful functions, stable performance, and guaranteed supply;
HCU: Adopting a linear valve hydraulic control unit, with fast response speed and high control accuracy;
Motor: Low noise<70dB
Algorithm: Based on sliding mode variable structure algorithm, it has strong robustness.
Main parameters:
Working temperature: -40~+125 ℃;
Working voltage: 9V~16V;
Support hard wire speed output and CAN bus speed output;
Support KWP2000 and UDS diagnostic protocols;
Integrated EPB type dedicated 46 pin connector;
Integrate EBD, EPB, and indirect TPMS functions.
Customization of development products based on the integrated, multifunctional, miniaturized, and low-cost needs of small electric vehicles for urban use;
ECU: Adopting ARM architecture 32bit chip platform, with powerful functions, stable performance, and guaranteed supply;
HCU: Adopting a linear valve hydraulic control unit, with fast response speed and high control accuracy;
Motor: Low noise<70dB
Algorithm: Based on sliding mode variable structure algorithm, it has strong robustness.
Main parameters:
Working temperature: -40~+125 ℃;
Working voltage: 9V~16V;
Support hard wire speed output and CAN bus speed output;
Support KWP2000 and UDS diagnostic protocols;
Integrated EPB type dedicated 46 pin connector;
Integrate EBD, EPB, and indirect TPMS functions.
